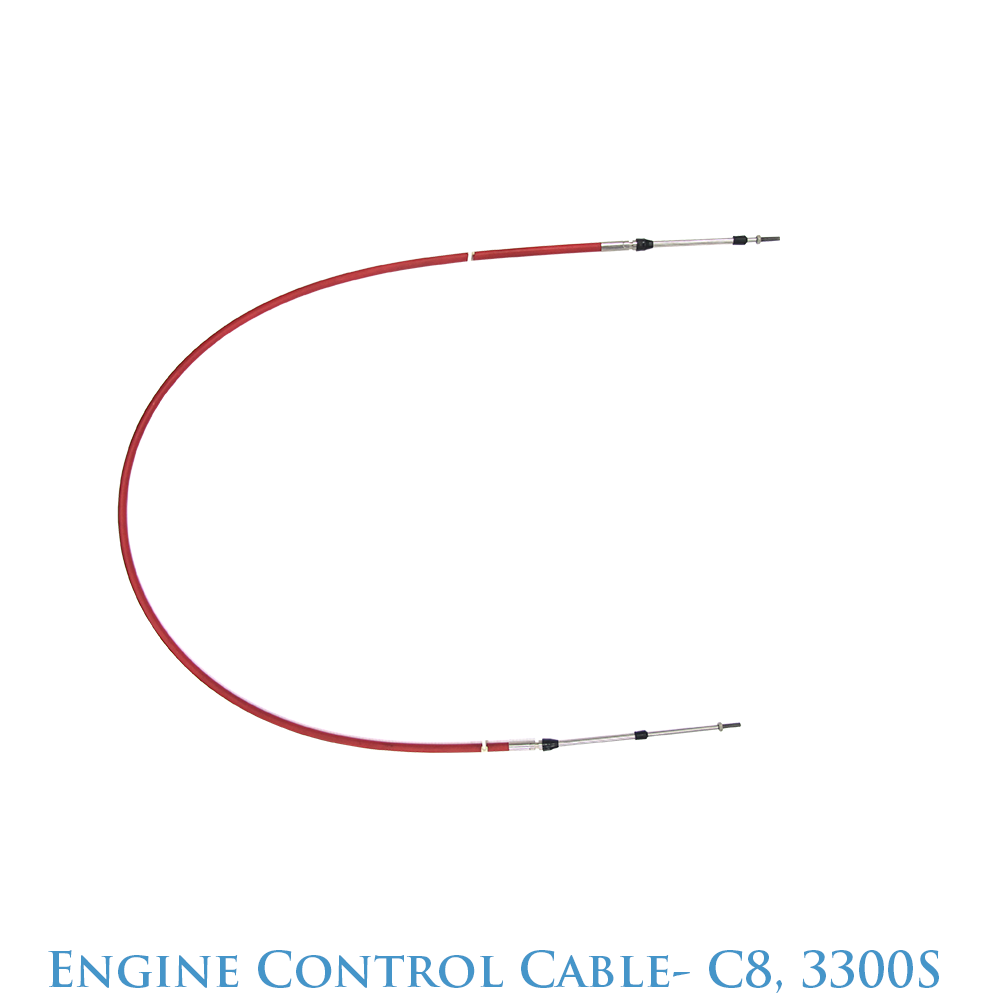

| ●Engine Control Cable For C8, 3300S Use for inboard, sterndrive and outboard engines cable |
| (1)Push pull cable. |
| (2)The outer is long lay conduit,OD is 8.7 mm,18 wires, and coating material is HDPE in red. |
| (3)Core wire OD is 3 mm, material is galvanize steel with PA6 coating. |
| (4)Cable end fitting material is stainless steel for anti-corrosion. |
| (5)End thread SPEC is 3/16-32 UNF and protected by PVC protector. |
| (6)The core cable applied with sufficient lubricant for good efficiency. |
| (7)Various lengths are available from 5FT to 30FT. |
| (8)For all inboard engines. For routboard engines Yamaha, Suzuki, Tohatsu, Honda. For sterndrive engines Volvo. |

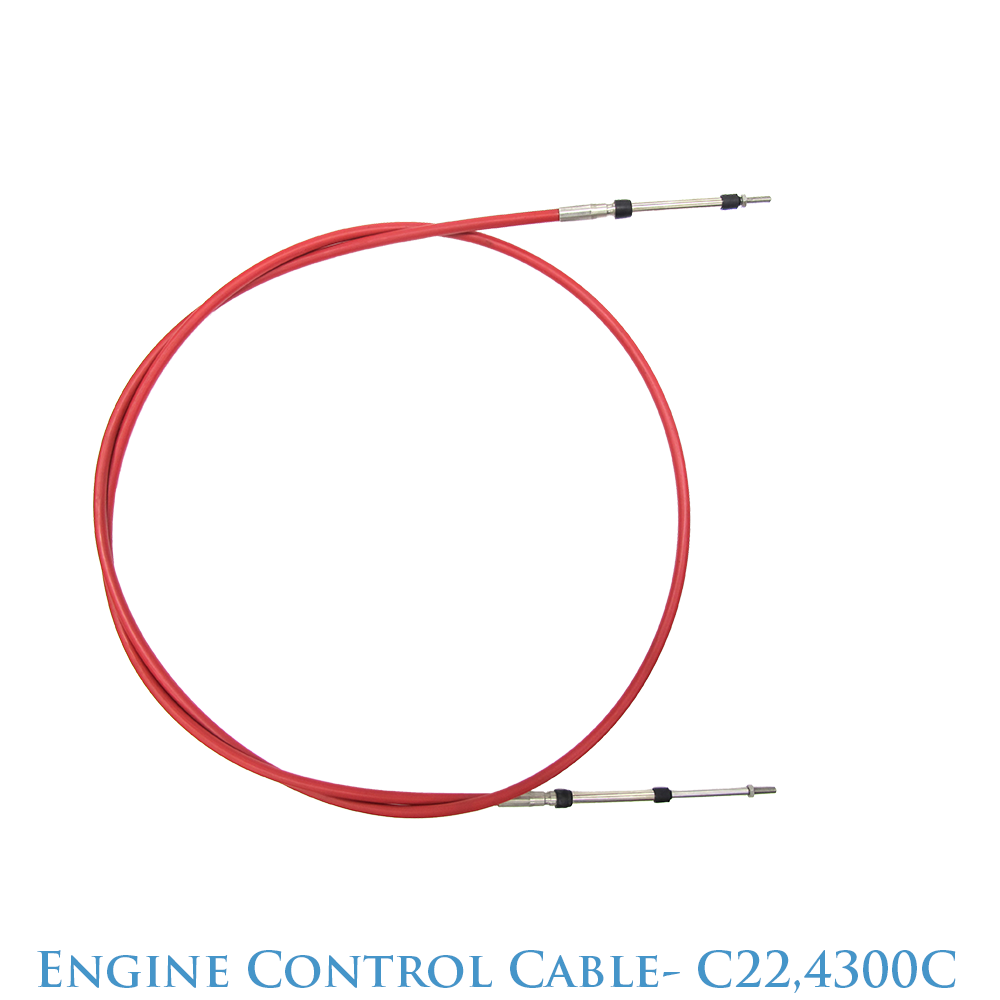

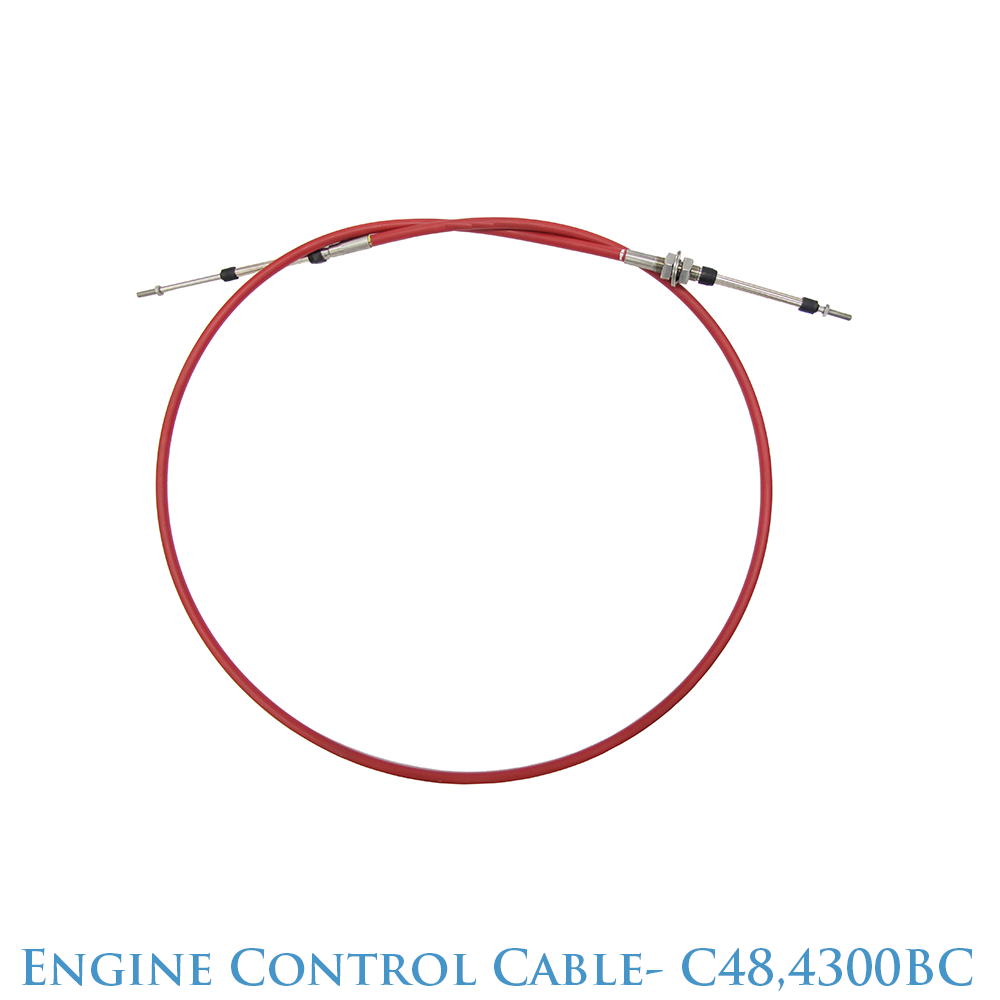

| ●Engine Control Cable For C22,4300C / C48,4300BC Use for inboard, sterndrive and outboard engines cable |
| (1)Push pull cable. |
| (2)The outer is long lay conduit,OD is 11 mm,19 wires, and coating material is HDPE in red. |
| (3)Core wire OD is 4.3 mm, material is galvanize steel with PA6 coating. |
| (4)Cable end fitting material is stainless steel and brass plating with Ni for anti-corrosion. |
| (5)End thread SPEC is 1/4-28UNF and protected by PVC protector. |
| (6)The core cable applied with sufficient lubricant for good efficiency. |
| (7)Various lengths are available from 5FT to 30FT. |

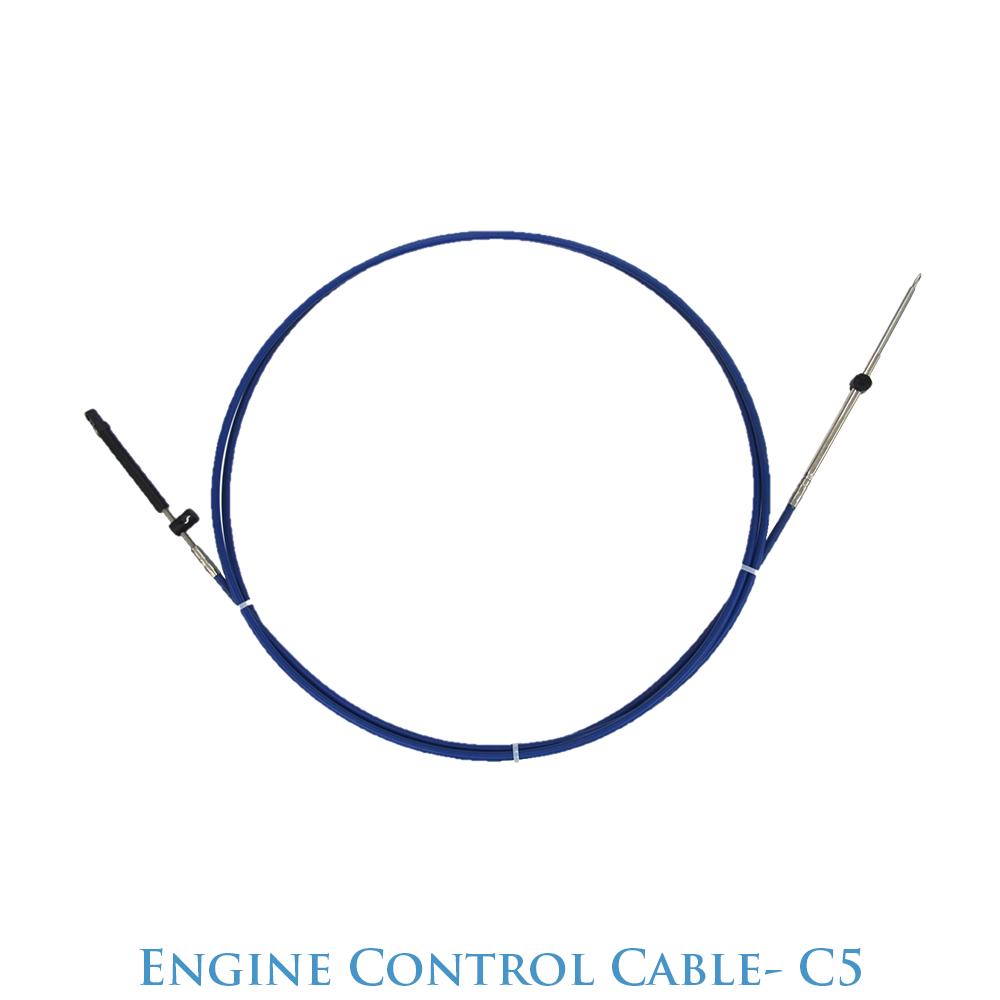

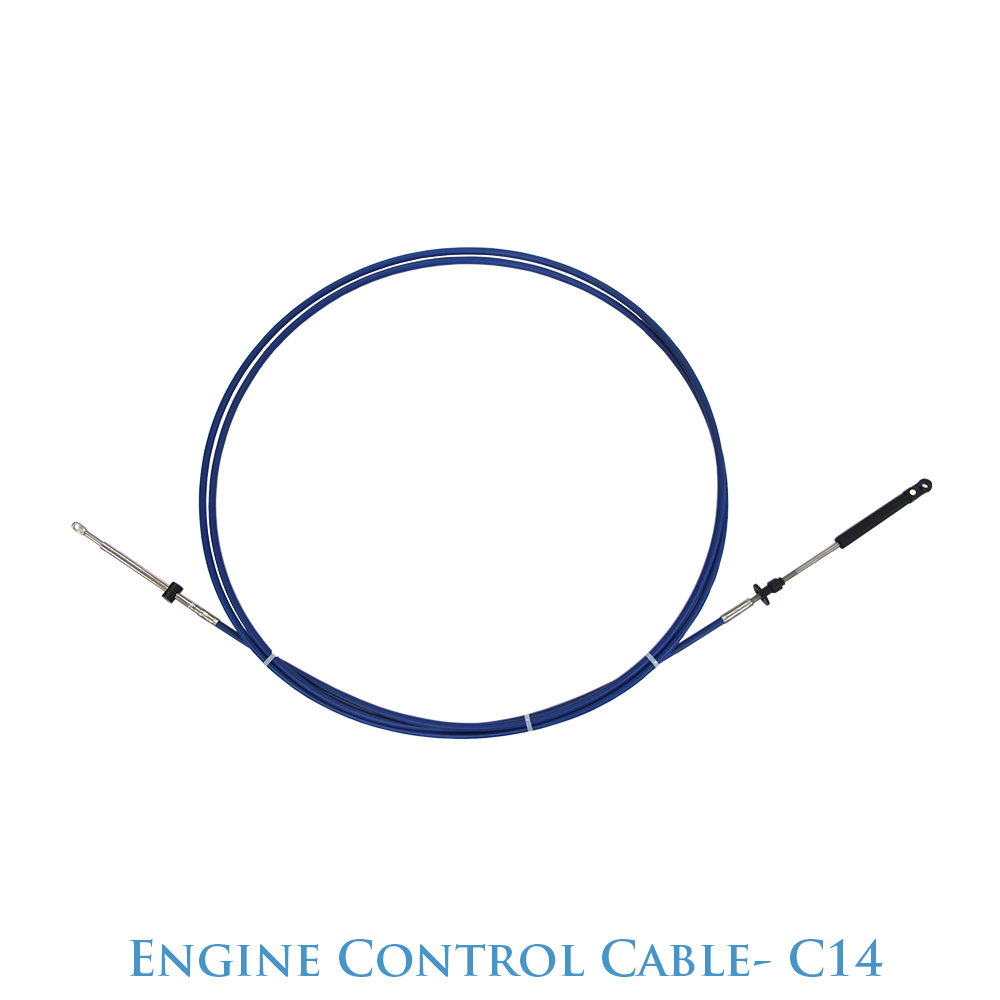

| ●Engine Control Cable For C5 / C14 / C36(GEN2) Use for inboard, sterndrive and outboard engines cable |
| (1)Push pull cable. |
| (2)The outer is long lay conduit,OD is 8.3 mm,23 wires, and coating material is PP in blue. |
| (3)Core wire OD is 3.2 mm, material is SUS304 steel with PBT coating. |
| (4)Cable end fitting material is stainless steel and brass plating with Ni for anti-corrosion. |
| (5)The material of plastic component is PA66. |
| (6)The core cable applied with sufficient lubricant for good efficiency. |
| (7)Various lengths are available from 5FT to 30FT. |
